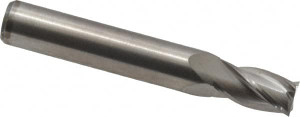

M.A. Ford 9/32", 1/2" LOC, 5/16" Shank Diam, 2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 163 16328120 - 76586064
Brand: M.A. Ford- SKU:
- 76586064
- ID:
- 632562
$36.25
M.A. Ford 9/32", 1/2" LOC, 5/16" Shank Diam, 2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 163
Manufacturer Part #: 16328120
S/N: 76586064
UNSPSC: 27112803
UPC: 697604163424
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.2813 |
| Mill Diameter (Inch) | 9/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Grade | Micrograin |
| Length Type | Stub |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Mill Diameter Tolerance | +0.000/-0.003 in |
| Series | 163 |
