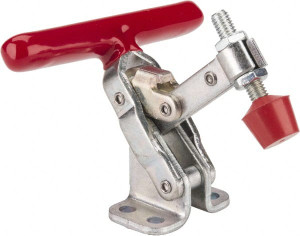

Destaco 200 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 65° Handle Movement, 105° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel 202-T - 76988252
Brand: Destaco- SKU:
- 76988252
- ID:
- 441455
$48.13
Destaco 200 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 65° Handle Movement, 105° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 202-T
S/N: 76988252
UNSPSC: 31162902
UPC: 697437520227
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical | |
| Bar Style | Solid | |
| Base Style | Flanged | |
| Bar End Type | Fixed Spindle | |
| Holding Capacity (N) | 890.00 | |
| Holding Capacity (Lb.) | 200.00 | |
| Length Distance Between Mount Holes (mm) | 12.45 | |
| Length Distance Between Mount Holes | 0.49in, 12.45mm | |
| Length Distance Between Mount Holes (Inch) | 0.49 | |
| Width Distance Between Mount Holes (mm) | 26.92 | |
| Width Distance Between Mount Holes | 1.06in, 26.92mm | |
| Width Distance Between Mount Holes (Decimal Inch) | 1.0600 | |
| Height Under Bar (Decimal Inch) | 9.9300 | |
| Height Under Bar (mm) | 252.22 | |
| Overall Length (mm) | 87.88 | |
| Overall Length (Decimal Inch) | 3.4600 | |
| Overall Height (Decimal Inch) | 2.8400 | |
| Overall Height (Mm - 5 Decimals) | 72.14 | |
| Base Length (Inch) | 1 | |
| Base Length (mm) | 25.40 | |
| Base Width (Inch) | 1.5600 | |
| Base Width | 39.62 | |
| Handle Style | T-Handle | |
| Material | Carbon Steel | |
| Handle Material | Carbon Steel | |
| Handle Color | Red | |
| Mounting Hole Diameter (mm) | 5.59 | |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 | |
| Bar Opening (Degrees) | 105 | |
| Handle Movement (Degrees) | 65 | |
| Maximum Mechanical Advantage | 06 | 01 |
| Spindle Thread Size | M6x1.0 | |
| Spindle Length (mm) | 44.00 | |
| Bar Width (mm) | 23.37 | |
| Bar Width (Decimal Inch) | 0.9200 | |
| UNSPSC Code | 31162902 | |
| Handle Width (Decimal Inch) | 3.5600 | |
| Front Of Base To Toggle Tip | 1.31in | |
| Includes | (2) Flanged Washers, (2) Nuts, Spindle | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.3100 | |
| Front of Base To Tip Of Toggle Bar (mm) | 33.27 | |
| Number Of Mounting Holes | 4 | |
| Finish Coating | Zinc |
