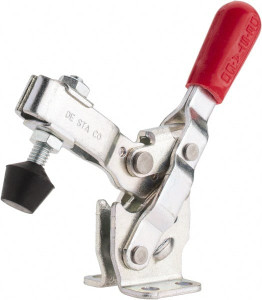

Destaco 375 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 62° Handle Movement, 115° Bar Opening, U-Bar, Flanged Base, Carbon Steel 207-37 - 76988500
Brand: Destaco- SKU:
- 76988500
- ID:
- 441459
$30.93
Destaco 375 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 62° Handle Movement, 115° Bar Opening, U-Bar, Flanged Base, Carbon Steel
Manufacturer Part #: 207-37
S/N: 76988500
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 1670.00 |
| Holding Capacity (Lb.) | 375.00 |
| Length Distance Between Mount Holes | 0.75in |
| Length Distance Between Mount Holes (Inch) | 0.75 |
| Width Distance Between Mount Holes | 1.25in |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Height Under Bar (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Height (Decimal Inch) | 5.6300 |
| Base Width (Inch) | 1.7500 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Material | Carbon Steel |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2800 |
| Bar Opening (Degrees) | 115 |
| Handle Movement (Degrees) | 62 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length | 2-1/4 |
| Spindle Travel (Inch) | 1.3000 |
| UNSPSC Code | 31162902 |
| Front Of Base To Toggle Tip | 2.15in |
| Includes | (2) Flanged Washers, (2) Nuts, Spindle |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.1500 |
