Sine System V-Blocks - 77-361-4
Brand: SPI Swiss Precision Instruments- SKU:
- 77-361-4
- ID:
- 94341
| Dimensions | 2-1/2 x 2-1/2 x 2" |
| Sine System | |
| Weight Lbs. Each V-Block | 3 |
$512.79
- Made in U.S.A.
- High precision, made of quality steel, hardened to 58-62 Rc.
- All V-Blocks guaranteed square, parallel and central within .0002".
- One reversible, swing-away clamp furnished with each V-Block.
- Unique off-set hole pattern in top of the V-Block, combined with the versatile clamp, offers a large variety of clamping possibilities.
- Side slots allow easy mounting to work surfaces.
- Single V-Blocks or matched pairs in all available sizes.

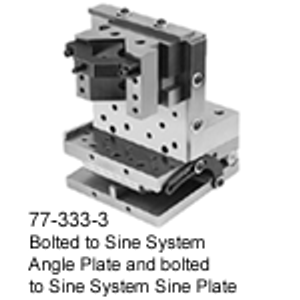

- All sine system models bolt directly to the sine system sine plates and compound sine plates of the same series.
- Sine system 1 models bolt directly to the 4 x 6 x 6 x 1-1/4" 90° conversion angle late.
