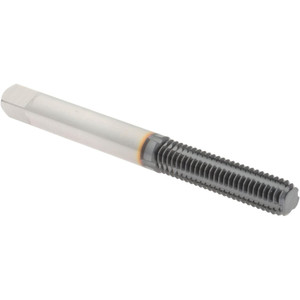

Hertel Thread Forming Tap: Metric, Bottoming, High-Speed Steel, TiCN Coated 1" Thread Length, 2.5000" OAL, D8 K010457AS85 - 77427912
Brand: Hertel- SKU:
- 77427912
- ID:
- 781719
$37.21
Hertel Thread Forming Tap: Metric, Bottoming, High-Speed Steel, TiCN Coated 1" Thread Length, 2.5000" OAL, D8
Manufacturer Part #: K010457AS85
S/N: 77427912
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Bottoming |
| Chamfered Threads | 1-2P |
| Material | High-Speed Steel |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Limit | D8 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 1 |
| Thread Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Diameter (mm) | 6.48 |
| Application | Blind Hole Threading |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| UNSPSC Code | 23241600 |
