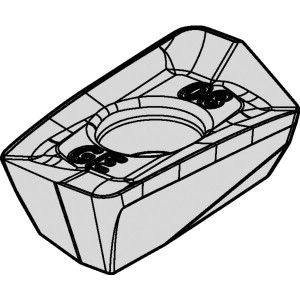

Kennametal EP1012EHD KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.4748" Long x 0.1476" Thick x 0.2654" Wide 3642029 - 77459121
Brand: Kennametal- SKU:
- 77459121
- ID:
- 661397
$28.73
Kennametal EP1012EHD KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.4748" Long x 0.1476" Thick x 0.2654" Wide
Manufacturer Part #: 3642029
S/N: 77459121
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | EDPT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1476 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 10T312 |
| Material Grade | C5, C6, C7 |
| Width (Inch) | 17/64 |
| Inscribed Circle (Decimal Inch) | 0.2650 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | EP1012EHD |
| Iso Code | EDPT10T312PDERHD |
| Standards | ANSI, ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EDPT10T312PDERHD |
| Cutter Series Compatibility | Mill 1-10 |
| Chip Breaker | HD |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.2654 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4750 |
