Value Collection TT322 TCN55 Carbide Turning Insert TiN/TiC/TiCN/TiN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle 41812 - 78639218
Brand: Value Collection- SKU:
- 78639218
- ID:
- 678406
$11.48

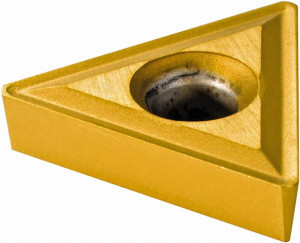

Value Collection TT322 TCN55 Carbide Turning Insert TiN/TiC/TiCN/TiN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: 41812
S/N: 78639218
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TT322 |
| ISO Insert Code | TT160308 |
| Relief Angle | 11 |
| Insert Style | TT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 60 |
| Manufacturer Grade | TCN55 |
| Coating/Finish | TiN, TiC, TiCN, TiN |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw |
| Coating Process | CVD |
| Primary Workpiece Material Code | M, P |
| Material Grade | C5 |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 322 |
