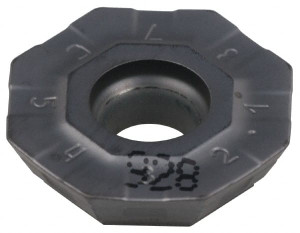

Iscar OFMT 07T3-AETN IC928 Carbide Milling Insert TiAlN Finish, 0.1787" Thick x 0.7114" Wide 5690618 - 78641156
Brand: Iscar- SKU:
- 78641156
- ID:
- 660487
$29.95
Iscar OFMT 07T3-AETN IC928 Carbide Milling Insert TiAlN Finish, 0.1787" Thick x 0.7114" Wide
Manufacturer Part #: 5690618
S/N: 78641156
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | OFMT |
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1790 |
| Coating/Finish | TiAlN |
| Relief Angle | 25 |
| Maximum Depth of Cut (Decimal Inch) | 0.1540 |
| Maximum Depth of Cut (mm) | 3.90 |
| Insert Size Code | 07T3 |
| Material Grade | C1, C2, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.7114 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1540 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | OFMT 07T3-AETN IC928 |
| Iso Code | OFMT 07T3-AETN |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OFMT 07T3-AETN IC928 |
| Cutter Series Compatibility | HOF-07 |
| Chip Breaker | AETN |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7114 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7114 |
