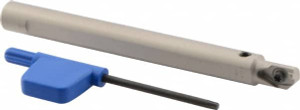

Iscar 0.492" Max Depth, Internal Right Hand Indexable Grooving Toolholder 4.03" OAL, 3/8" Shank, Uses MI.R 8 Inserts, MIFHR Toolholder, Through Coolant, Series MinCut 2861099 - 79009460
Brand: Iscar- SKU:
- 79009460
- ID:
- 685536
$346.08
Iscar 0.492" Max Depth, Internal Right Hand Indexable Grooving Toolholder 4.03" OAL, 3/8" Shank, Uses MI.R 8 Inserts, MIFHR Toolholder, Through Coolant, Series MinCut
Manufacturer Part #: 2861099
S/N: 79009460
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Toolholder Style | MIFHR |
| Insert Holding Method | Screw |
| Insert Compatibility | MI.R 8 |
| Compatible Insert Size Code | MEFL, MIFR, MIGR 8, MITR 8-MT, MIUR 8 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Min Cut |
| Shank Length (Decimal Inch) | 3.5380 |
| Overall Length (Decimal Inch) | 4.0300 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.0550 |
| Head Length (Decimal Inch) | 0.4920 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | MIFHR 9.5C-8 |
| Complete Insert Compatibility | MIGR 8, MITR 8-MT, MIUR 8 |
| Coolant Through | Yes |
