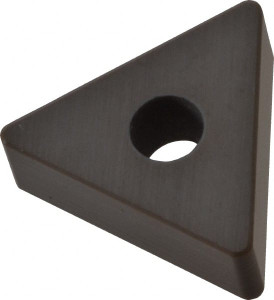

Kennametal TNGA332T0820 KY3500 Ceramic Turning Insert Uncoated, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENLOC 1181984 - 79260352
Brand: Kennametal- SKU:
- 79260352
- ID:
- 673039
$38.62
Kennametal TNGA332T0820 KY3500 Ceramic Turning Insert Uncoated, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENLOC
Manufacturer Part #: 1181984
S/N: 79260352
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | TNGA |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60degree |
| Manufacturer Grade | KY3500 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Ceramic |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (mm) | 16.50 |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 1181984 |
| Material Grade | Silicon Nitride |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | TNGA332T0820 |
| Width (Decimal Inch - 4 Decimals) | 0.6496in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
