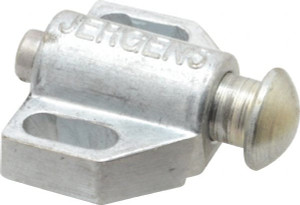

Jergens 15/16" Base Width, 1/8" Stroke Len, 3/8" Stop Head OD, 21/32" Btw Mt Hole Ctrs, 19/32" Btw Mt Hole & Edge, Round Spring Locating Stop 13/32" Overall Height, 11/16" Body Len x 15/16" Body Width, 7/32" Base Thickness 36101 - 82436015
Brand: Jergens, Inc.- SKU:
- 82436015
- ID:
- 447513
$18.60
Jergens 15/16" Base Width, 1/8" Stroke Len, 3/8" Stop Head OD, 21/32" Btw Mt Hole Ctrs, 19/32" Btw Mt Hole & Edge, Round Spring Locating Stop 13/32" Overall Height, 11/16" Body Len x 15/16" Body Width, 7/32" Base Thickness, 13/32" Flat Button ID, 10 Lb Mid End Force
Manufacturer Part #: 36101
S/N: 82436015
UNSPSC: 31162900
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Stop Head Outside Diameter (Inch) | 0.375in |
| Stop Head Outside Diameter (Decimal Inch) | 0.3750 |
| Stroke Length | 0.125in |
| Stroke Length (Inch) | 1/8 |
| Body Length | 0.6875in |
| Base Width (Inch) | 15/16 |
| Body Length (Inch) | 0.6875in, 11/16 |
| Distance Between Mount Hole To Edge | 0.5938in |
| Initial End Force | 10lb |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6563 |
| Distance Between Mount Hole Centers (Inch) | 21/32, 0.66in |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.5938 |
| Body Width | 0.9375in |
| Mounting Slot Length | 0.35in |
| Mounting Slot Width | 0.14in |
| Middle End Force (Lb.) | 4.54kg |
| Body Width (Decimal Inch) | 0.9375 |
| Mounting Slot Width (Inch) | 0.14in |
| Base Thickness (Inch) | 0.2188in |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Steel |
