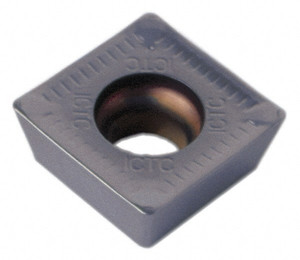

Ingersoll Cutting Tools SHLT110408N-PH IN2005 Carbide Indexable Drill Insert TiAlN Finish, 0.435" Inscribed Circle, 0.181" Thick, 0.031" Corner Radius, 90° Square 5101007 - 84378868
Brand: Ingersoll Cutting Tools- SKU:
- 84378868
- ID:
- 655713
$32.54
Ingersoll Cutting Tools SHLT110408N-PH IN2005 Carbide Indexable Drill Insert TiAlN Finish, 0.435" Inscribed Circle, 0.181" Thick, 0.031" Corner Radius, 90° Square
Manufacturer Part #: 5101007
S/N: 84378868
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SHLT |
| Insert Material | Carbide |
| Manufacturer Grade | IN2005 |
| Inscribed Circle (Decimal Inch) | 0.4350 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | PH |
| Series | SHLT-N-PH |
| Material Grade | C2 |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron, Stainless Steel, Super-Alloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Ansi Code | SHLT110408N-PH |
| Iso Code | SHLT110408N-PH |
| Compatible Drill Style | 15C, 15S |
| Insert Size | 110408 |
| Coating Classification | PVD |
| Width (Decimal Inch - 4 Decimals) | 0.4350 |
| Length (Decimal Inch - 4 Decimals) | 0.4350 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1810 |
| Coating/Finish | TiAlN |
| Insert Size Code | 11 |
