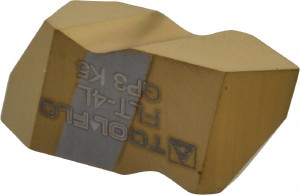

Tool-Flo FLT-4L GP3 Carbide Threading Insert TiN Finish, Internal/External, 60° V, 4-12 TPI, 4-20 TPI, Series Flo-Lock 604600LJ5A - 85565075

Tool-Flo FLT-4L GP3 Carbide Threading Insert TiN Finish, Internal/External, 60° V, 4-12 TPI, 4-20 TPI, Series Flo-Lock 604600LJ5A - 85565075

Brand:   Tool-Flo
SKU:
85565075
ID:
667238
callling
$31.10
Current Stock:
Adding to cart… The item has been added

Tool-Flo

Tool-Flo FLT-4L GP3 Carbide Threading Insert TiN Finish, Internal/External, 60° V, 4-12 TPI, 4-20 TPI, Series Flo-Lock

Manufacturer Part #: 604600LJ5A

S/N: 85565075

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleFLT
Insert MaterialCarbide
Manufacturer GradeGP3
Material GradeMicrograin
Thread Standard60 Deg V
Insert HandLeft Hand
Internal Pitch4-12 TPI
External Pitch4-20 TPI
Included Angle60degree
ChipbreakerCB
SeriesFlo-Lock
Coating ProcessPVD
Tip to Top of Insert (Decimal Inch)0.1280
Minimum Corner Radius (Decimal Inch)0.0050
Maximum Corner Radius (Decimal Inch)0.0080
Insert Size4
Thickness (Decimal Inch - 4 Decimals)0.2550in
Finish CoatingTitanium Nitride
Thread TypeInternal, External
UNSPSC Code23291804
