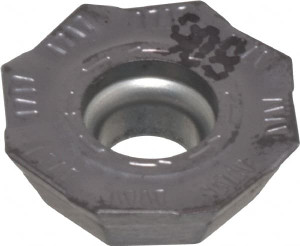

Iscar OEMT060405AER-76 IC908 Carbide Milling Insert TiAlN Finish, 0.1866" Thick 5603151 - 85757656
Brand: Iscar- SKU:
- 85757656
- ID:
- 660586
$30.77
Iscar OEMT060405AER-76 IC908 Carbide Milling Insert TiAlN Finish, 0.1866" Thick
Manufacturer Part #: 5603151
S/N: 85757656
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | OEMT |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | TiAlN |
| Relief Angle | 20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Size Code | 060405 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.5618 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.0980 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Secondary Workpiece Material Code | H, S |
| Ansi Code | OEMT 060405AER-76 IC908 |
| Iso Code | OEMT 060405AER-76 |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OEMT 060405AER-76 IC908 |
| Cutter Series Compatibility | HOF-R06, HOE-R06 |
| Chip Breaker | 76 |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5618 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5618 |
