Accupro 1/8" Diam 4 Flute Solid Carbide 0.015" Corner Radius End Mill AlTiN Finish, 1-1/2" OAL, 1/4" LOC, 1/8" Shank Diam, 40° Helix, RH Cut, RH Flute, Centercutting 12182732 - 86800315
Brand: Accupro- SKU:
- 86800315
- ID:
- 611868
$17.51

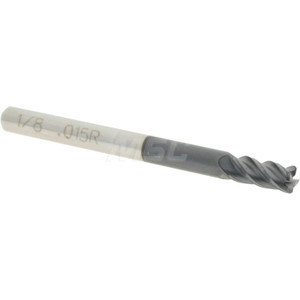

Accupro 1/8" Diam 4 Flute Solid Carbide 0.015" Corner Radius End Mill AlTiN Finish, 1-1/2" OAL, 1/4" LOC, 1/8" Shank Diam, 40° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 12182732
S/N: 86800315
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Stub |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 1/8 |
| Corner Radius Tolerance | 0.00150 in |
| Mill Diameter Tolerance | +0.000000 to -0.002500 in |
| Shank Diameter Tolerance | -0.0001 to -0.0004 in |
| Material Grade | Micrograin |
