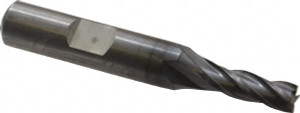

Cleveland 15/64", 5/8" LOC, 3/8" Shank Diam, 2-7/16" OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HG-4C C33247 - 87379210
Brand: Cleveland Twist Drill- SKU:
- 87379210
- ID:
- 628022
$40.36
Cleveland 15/64", 5/8" LOC, 3/8" Shank Diam, 2-7/16" OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HG-4C
Manufacturer Part #: C33247
S/N: 87379210
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.2344 |
| Mill Diameter (Inch) | 15/64 |
| Number Of Flutes | 4 |
| End Mill Material | High Speed Steel |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-7/16 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel |
| Primary Workpiece Material Code | K, N, P |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical, Weldon Flat |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Series | HG-4C |
