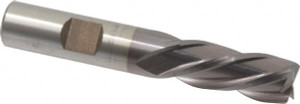

Cleveland 1/2", 1-1/4" LOC, 1/2" Shank Diam, 3-1/4" OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Left Hand Cut, Left Hand Flute, Series HG-4LL C33623 - 87386751
Brand: Cleveland Twist Drill- SKU:
- 87386751
- ID:
- 628765
$108.98
Cleveland 1/2", 1-1/4" LOC, 1/2" Shank Diam, 3-1/4" OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Left Hand Cut, Left Hand Flute, Series HG-4LL
Manufacturer Part #: C33623
S/N: 87386751
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 4 |
| End Mill Material | High Speed Steel |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3-1/4 |
| Centercutting | No |
| Cutting Direction | Left Hand |
| Flute Direction | Left Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel |
| Primary Workpiece Material Code | K, N, P |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical, Weldon Flat |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Series | HG-4LL |
