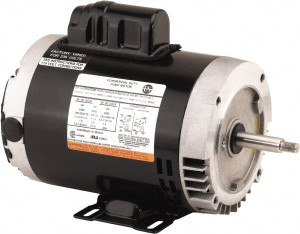

U.S. Motors 1 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115/208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 12.8/6.7-6.4 Full Load Amps, Reversible EC1002 - 87958773
Brand: U.S. Motors- SKU:
- 87958773
- ID:
- 573621
$466.00
U.S. Motors 1 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115/208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 12.8/6.7-6.4 Full Load Amps, B Class Insulation, Reversible
Manufacturer Part #: EC1002
S/N: 87958773
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Enclosure Style | ODP |
| Horsepower | 1 |
| Name Plate RPMs | 3450 |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 56C |
| Mount Style | C-Face |
| Mount Type | C-Face |
| Bearing Type | Ball |
| Full Load Amperage | 12.8/6.7 to 6.4 |
| Insulation Class | B |
| Full Load Efficiency Rating | 78.50 |
| Service Factor Rating | 1.40 |
| Motor Rotation | Reversible |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Dayton Part Number | 5K659 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | Auto |
| Number Of Speeds | 1 |
| Type | ODP |
| Product Service Code | 6105 |
