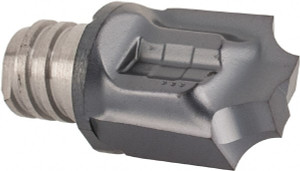

Iscar MMHR2.5/0945.12T06 908 Carbide Concave Radius Mill Tip Insert TiAlN Finish, 2 Flutes, 0.201" Diam, 0.374" Depth, Series Multimaster 5604024 - 88542667
Brand: Iscar- SKU:
- 88542667
- ID:
- 663753
$104.23
Iscar MMHR2.5/0945.12T06 908 Carbide Concave Radius Mill Tip Insert TiAlN Finish, 2 Flutes, 0.201" Diam, 0.374" Depth, Series Multimaster
Manufacturer Part #: 5604024
S/N: 88542667
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Milling Tip Type | Corner Rounding |
| Milling Tip Style | MM HR |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Maximum Depth of Cut (mm) | 9.5 |
| Cutting Diameter (Decimal Inch) | 0.2010 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM HR |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0940 |
| Cutting Width (Decimal Inch) | 0.2010in |
| Functional Length (Decimal Inch) | 0.4920 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM HR2.5/094-5.1-2T06 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5604024 |
| Chamfer Angle | 0degree |
| Overall Length (Decimal Inch) | 0.4920in |
| Insert Size | 2.5/094-5.1 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3740in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 2 |
| Extension From Holder (Inch) | 0.4920 |
