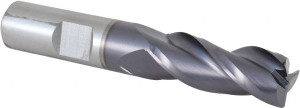

YG-1 1/2" Diam 3 Flute Solid Carbide 0.03 to 0.035" Corner Radius End Mill TiAlN Finish, 3" OAL, 1-1/4" LOC, 1/2" Shank Diam, 35° Helix, RH Cut, RH Flute 56593TF - 88600523
Brand: YG-1- SKU:
- 88600523
- ID:
- 618599
$114.95
YG-1 1/2" Diam 3 Flute Solid Carbide 0.03 to 0.035" Corner Radius End Mill TiAlN Finish, 3" OAL, 1-1/4" LOC, 1/2" Shank Diam, 35° Helix, RH Cut, RH Flute
Manufacturer Part #: 56593TF
S/N: 88600523
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN-Futura |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8660 |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Mill Diameter Tolerance | 0.0000 to 0.0012 in |
| Shank Diameter Tolerance | 0.0000 to 0.0003 in |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M |
| UNSPSC Code | 27112803 |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | MG |
| Series | E5074 |
| Material Application | Steel, Stainless Steel, Cast Iron |
| Coating Classification | CVD |
| For Use With. | End Mill Holders |
| Helix Style | Medium |
