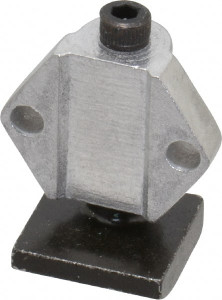

Vlier 7/8" Body Width x 11/16" Body Len, 1/8" Stroke Len, 21/32" Btw Mt Hole Ctrs, 0.656" Btw Mt Hole & Edge, Tangless Square Spring Locating Stop 5.13 Lb Init End Force, 10 Lb Mid End Force, 14.9 Lb Final End Force SS88B - 90868076
Brand: Vlier- SKU:
- 90868076
- ID:
- 447535
$9.72
Vlier 7/8" Body Width x 11/16" Body Len, 1/8" Stroke Len, 21/32" Btw Mt Hole Ctrs, 0.656" Btw Mt Hole & Edge, Tangless Square Spring Locating Stop 5.13 Lb Init End Force, 10 Lb Mid End Force, 14.9 Lb Final End Force, 5/8" Stop Head Width x 5/8" Stop Head Height
Manufacturer Part #: SS88B
S/N: 90868076
UNSPSC: 27112132
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Stop Head Width (Inch) | 0.625in |
| Stop Head Width (Decimal Inch) | 0.6250 |
| Stroke Length | 0.125in |
| Stroke Length (Inch) | 1/8 |
| Body Length | 0.688in |
| Stop Head Height | 0.625in |
| Base Width (Decimal Inch) | 0.8750, 0.875in |
| Stop Head Thickness | 0.1875in |
| Body Length (Decimal Inch) | 0.688in, 0.6880 |
| Body Width | 0.875in |
| Stop Head Height (Inch) | 5/8 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6560 |
| Distance Between Mount Hole Centers (Inch) | 21/32, 0.656in |
| Tang Profile | Tangless |
| Initial End Force | 5.13lb |
| Final End Force | 14.9lb |
| Mounting Slot Length | 0.125in |
| Mounting Slot Width | 0.136in |
| Middle End Force (kg) | 10.00 |
| Stop Head Thickness (Decimal Inch) | 0.1875 |
| Body Width (Decimal Inch) | 0.8750 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.6560 |
| Mounting Slot Length (Inch) | 1/8 |
| Mounting Slot Width (Decimal Inch) | 0.136in, 0.1360 |
| Base Thickness (Inch) | 3/16, 0.1875in |
| Body Material | Aluminum |
