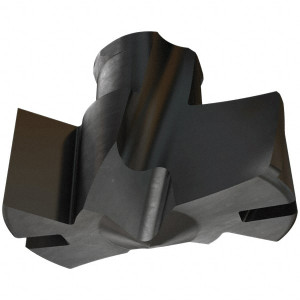

Iscar FCP0394 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 0.394" Diam, 0.173mm High, Through Coolant, Series FCP 5509955 - 91126318
Brand: Iscar- SKU:
- 91126318
- ID:
- 656838
$136.28
Iscar FCP0394 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 0.394" Diam, 0.173mm High, Through Coolant, Series FCP
Manufacturer Part #: 5509955
S/N: 91126318
UNSPSC: 23242105
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.3940 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | FCP |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 10 |
| Functional Length (Decimal Inch) | 0.1460 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Secondary Workpiece Material | Stainless Steel, Super-alloys & Titanium, Hard Material |
| Secondary Workpiece Material Code | M, S, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.1730 |
| Overall Length/Projection (Decimal Inch) | 0.1730 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Twist |
| ISO Number | FCP 100 |
| Coolant Through | No |
| Point Type | Thinned |
| Spiral Type | Slow Spiral |
| Style | Flat Bottom |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
