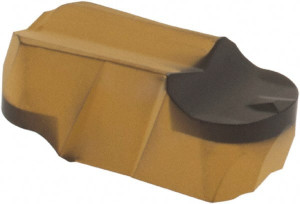

Iscar GIPI6.353.18 IC8250 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 6.35mm Cutting Width, Series Cut Grip 6405259 - 91136382
Brand: Iscar- SKU:
- 91136382
- ID:
- 649235
$82.59
Iscar GIPI6.353.18 IC8250 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 6.35mm Cutting Width, Series Cut Grip
Manufacturer Part #: 6405259
S/N: 91136382
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GIPI |
| Insert Size Code | 635318 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Cutting Width (mm) | 6.35 |
| Insert Hand | Neutral |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC8250 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 3.18 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 635318 |
| Corner Radius (Inch) | 1/8 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.6180 |
| Overall Length (mm) | 15.70 |
| Primary Workpiece Material | Stainless Steel, Steel |
| Primary Workpiece Material Code | M, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | P |
| Coating/Finish | Al2O3 |
| Single Or Double End | Double |
