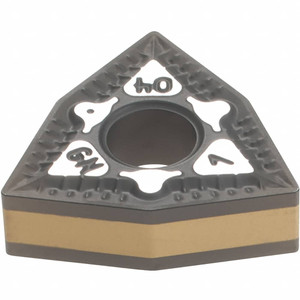

Iscar WNMG431GN IC8150 Carbide Turning Insert TiCN/Al2O3 Finish, 8.7mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon, Series Isoturn 5508176 - 91143065
Brand: Iscar- SKU:
- 91143065
- ID:
- 670712
$22.83
Iscar WNMG431GN IC8150 Carbide Turning Insert TiCN/Al2O3 Finish, 8.7mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon, Series Isoturn
Manufacturer Part #: 5508176
S/N: 91143065
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC8150 |
| Coating/Finish | TiCN, Al2O3 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (mm) | 8.70 |
| Insert Length (Decimal Inch) | 0.3425 |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Stocking Category | D |
| Chip Breaker | GN |
| Insert Size Code | 431 |
