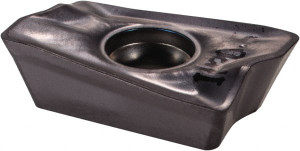

Ingersoll Cutting Tools AOMT170508R IN2005 Carbide Milling Insert TiAlN Finish, 0.67" Long x 0.219" Thick x 0.421" Wide 5873048 - 91214296
Brand: Ingersoll Cutting Tools- SKU:
- 91214296
- ID:
- 659935
$29.43
Ingersoll Cutting Tools AOMT170508R IN2005 Carbide Milling Insert TiAlN Finish, 0.67" Long x 0.219" Thick x 0.421" Wide
Manufacturer Part #: 5873048
S/N: 91214296
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | AOMT |
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2180 |
| Coating/Finish | TiAlN |
| Insert Size Code | 170508 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4210 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.6330 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | K, M, P, S |
| Ansi Code | AOMT170508R IN2005 |
| Iso Code | AOMT170508R IN2005 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5873048 |
| Cutter Series Compatibility | 12J1G, 12L1G, 12N1G, 22J3G, 22J5G, 2J1G, 2L1G |
| Chip Breaker | None |
| Material Application | Cast Iron, Stainless Steel, Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4210 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6700 |
