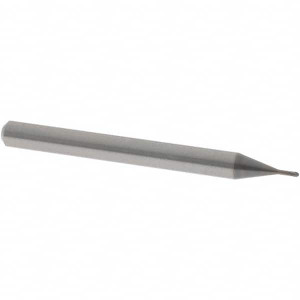

OSG 0.8mm Diam, 0.5mm LOC, 2 Flute Solid Carbide Ball End Mill WXL Finish, Single End, 45mm OAL, 4mm Shank Diam, Spiral Flute 3110830 - 91704627

OSG 0.8mm Diam, 0.5mm LOC, 2 Flute Solid Carbide Ball End Mill WXL Finish, Single End, 45mm OAL, 4mm Shank Diam, Spiral Flute 3110830 - 91704627

Brand:   OSG USA, INC.
SKU:
91704627
ID:
610041
callling
$83.35
Current Stock:
Adding to cart… The item has been added

OSG USA, INC.

OSG 0.8mm Diam, 0.5mm LOC, 2 Flute Solid Carbide Ball End Mill WXL Finish, Single End, 45mm OAL, 4mm Shank Diam, Spiral Flute

Manufacturer Part #: 3110830

S/N: 91704627

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)0.0315
Mill Diameter (mm)0.80mm
Number Of Flutes2
End Mill MaterialSolid Carbide
Length of Cut (mm)0.50mm
Coating/FinishWXL
Extended ReachYes
Variable HelixNo
Variable IndexNo
Helix Angle30
Overall Length (mm)45.00mm
ChipbreakerNo
UndercuttingNo
Length Of Cut Range (Decimal Inch)0.0000 to 0.0500
Length TypeExtended
Helix StyleMedium
Material Removal TypeRoughing & Finishing
Shank Diameter (mm)4.00mm
Neck Diameter (mm)0.75
Nose Radius (mm)0.40
Neck Length (mm)2.50
Reach Length (mm)3.00
Shank Diameter Toleranceh6
Maximum Helix Angle30
Minimum Helix Angle30
Primary Workpiece MaterialSteel, Stainless Steel, Cast Iron, Hard Material
Primary Workpiece Material CodeP, M, K, H
Secondary Workpiece MaterialNon-Ferrous Metal, Superalloys & Titanium
Secondary Workpiece Material CodeN, S
Material GradeUltra Fine Micrograin
Flute DirectionRight Hand
Cutting DirectionRight Hand
Series3790
Flute TypeHelical
UNSPSC Code27112803
Additional InformationExocarb® WXL High Performance End Mills For Pre-Hardened &Amp, Hardened Steels.
CentercuttingYes
Coating ClassificationPVD
Single Or Double EndSingle
Shank TypeStraight-Cylindrical
PitchCoarse
Coolant ThroughNo
Length Of Cut (Decimal Inch - 4 Decimals)0.0197
Manufacturers Catalog Number3110830
System Of MeasurementMetric
