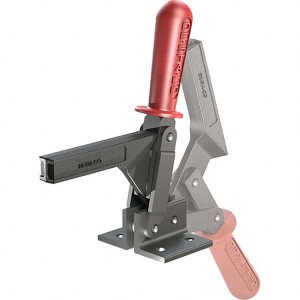

Destaco 1,147 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 138° Handle Movement, 74° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel 5110 - 92262617
Brand: Destaco- SKU:
- 92262617
- ID:
- 441489
$102.48
Destaco 1,147 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 138° Handle Movement, 74° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel
Manufacturer Part #: 5110
S/N: 92262617
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 5100.00 |
| Holding Capacity (Lb.) | 1146.53 |
| Height Under Bar (Decimal Inch) | 2.1400 |
| Height Under Bar (mm) | 54.36 |
| Overall Height (Decimal Inch) | 6.5400 |
| Overall Height (Mm - 5 Decimals) | 166.12 |
| Base Length (Inch) | 2-1/2 |
| Base Length (mm) | 63.50 |
| Base Width (Inch) | 0.9800 |
| Base Width | 24.89 |
| Handle Style | Straight |
| Material | Forged Alloy Steel |
| Handle Material | Forged Alloy Steel |
| Handle Color | Red |
| Mounting Hole Diameter (mm) | 9.00 |
| Mounting Hole Diameter (Decimal Inch) | 0.3543 |
| Bar Opening (Degrees) | 74 |
| Handle Movement (Degrees) | 138 |
| Bar Width (mm) | 22.10 |
| Bar Width (Decimal Inch) | 0.8700 |
| Bar Thickness (mm) | 19.05 |
| UNSPSC Code | 31162902 |
| Bar Thickness (Decimal Inch) | 0.7500 |
| Front Of Base To Toggle Tip | 3.83in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.8300 |
| Front of Base To Tip Of Toggle Bar (mm) | 97.28 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Oxide |
