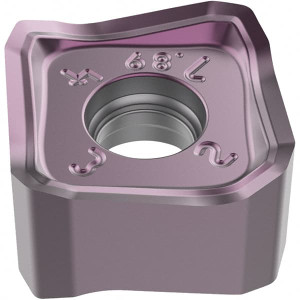

Seco Tools SNMX1407ZNTR-M16 Carbide Milling Insert TiAlN/TiSiN Finish, 14mm Long x 6.59mm Thick x 14mm Wide 03241874 - 99002693
Brand: Seco Tools- SKU:
- 99002693
- ID:
- 662999
$38.13
Seco Tools SNMX1407ZNTR-M16 Carbide Milling Insert TiAlN/TiSiN Finish, 14mm Long x 6.59mm Thick x 14mm Wide
Manufacturer Part #: 03241874
S/N: 99002693
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | SNMX |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | MK2050 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2594 |
| Thickness (mm) | 6.59 |
| Coating/Finish | TiSiN, TiAlN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.4213 |
| Insert Size Code | 1407 |
| Material Grade | Medium Grain |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Inscribed Circle (mm) | 14.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | SNMX-14 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4213 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel, Hard Material |
| Secondary Workpiece Material Code | P, H |
| Ansi Code | SNMX1407ZNTR-M16 |
| Iso Code | SNMX1407ZNTR-M16 |
| Standards | ISO |
| Rake Angle | 15 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SNMX1407ZNTR-M16 |
| Cutter Series Compatibility | R220.54-14 |
| Chip Breaker | M16 |
| Material Application | Cast Iron, Steel, Hard Material |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 14.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5512 |
| Width (mm - 2 Decimals) | 14.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5512 |
