American Drill Safety Engineered Hoist Ring, 1/2"-13 Thread Size, 2,500 lbs. Rated Load - 23301
Brand: American Drill Bushing- SKU:
- 99-025-306
- ID:
- 285199
$268.95
American Drill Safety Engineered Hoist Ring, 1/2"-13 Thread Size, 2,500 lbs. Rated Load - 23301
- Replaces conventional eyebolts for maximum lift in a wide variety of applications.
- Perfect for large dies and fixtures, heavy machinery, mobile equipment, structural handling and cargo handling.
- High Strength 4140 Alloy Steel.
- 5:1 magnetic particle inspected per ASTM 1444.
- Hoist rings retain same rated WLL from 0° to 90° from the bolt axis.
- Standard tolerance + - .030" unless otherwise specified.
- Black oxide for corrosion resistance, also available in cadmium, titanium-cadmium, nickel and other plating options.

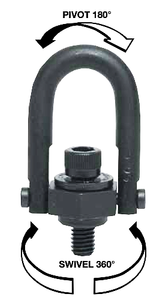

- Swivels 360°, pivot 180° under load.
| A | B | D | E | F |
| 0.70" | 2-2/5" | 1/2" | 1-7/100" | 3-77/100" |
For More American Drill Safety Engineered Hoist Rings Click Here
