American Drill Safety Engineered Hoist Ring, 5/16"-18 Thread Size, 800 lbs. Rated Load - 23052
Brand: American Drill Bushing- SKU:
- 99-025-302
- ID:
- 285197
$222.95
American Drill Safety Engineered Hoist Ring, 5/16"-18 Thread Size, 800 lbs. Rated Load - 23052
- Replaces conventional eyebolts for maximum lift in a wide variety of applications.
- Perfect for large dies and fixtures, heavy machinery, mobile equipment, structural handling and cargo handling.
- High Strength 4140 Alloy Steel.
- 5:1 magnetic particle inspected per ASTM 1444.
- Hoist rings retain same rated WLL from 0° to 90° from the bolt axis.
- Standard tolerance + - .030" unless otherwise specified.
- Black oxide for corrosion resistance, also available in cadmium, titanium-cadmium, nickel and other plating options.

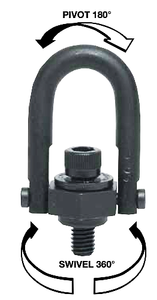

- Swivels 360°, pivot 180° under load.
| A | B | D | E | F |
| 0.43" | 1-61/100" | 3/8" | 27/50" | 2-67/100" |
