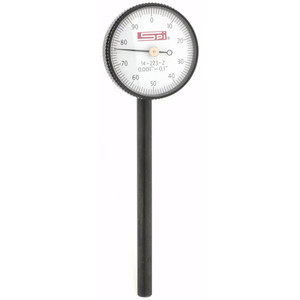

Back Plunger Dial Indicator, 0.1" Range, 0-100 Dial Reading - 14-223-2
Brand: SPI Swiss Precision Instruments- SKU:
- 14-223-2
- ID:
- 173805
| Range | 0.1" |
| Reading | 0-100 |
$109.95
Back Plunger Dial Indicator, 0.1" Range, 0-100 Dial Reading - 14-223-2
Dial Drop Indicator: 0.1" Max Measurement, 0-100 Dial Reading
1-35/64" Dial Dia, White, 0.001" Dial Graduation, 0.1000" per Revolution, Plunger Back
- Ideal for fast, accurate set-ups and measurements on lathes, milling machines, planers, sharpers etc. plus various inspection applications.
- Easy reading 0.001" (0.01) dial graduation.
Specifications:
| Back Type | Plunger |
| Indicator Style | Plunger |
| Bearing Type | Jeweled |
| Maximum Measurement (Decimal Inch) | 0.1 |
| Dial Graduation (Decimal Inch) | 0.001 |
| Dial Reading | 0-100 |
| Dial Diameter (Decimal Inch) | 1.55 |
| Dial Diameter (Inch) | 1-35/64 |
| Stem Diameter (Decimal Inch) | 0.375 |
| Stem Length (Decimal Inch ) | 1.7 |
| Traceability Certification Included | NPL |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | No |
| Features | Fast, Accurate Set-Ups; Lever Attachment |
| Includes | Universal Clamp; #4-48 Thread Size; Test Indicator, Fully Jeweled; 5⁄16" x 5" Holding Rod; G Clamp; Tool Post Holder; 5⁄16" x 3" Holding Rod |
| Range Per Revolution (Decimal Inch) | 0.1 |
| Unit of Measure | English |
| UNSPSC Code | 41111630 |
