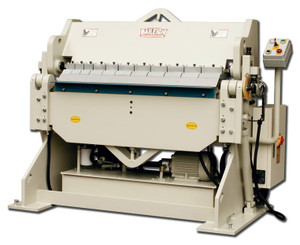

Baileigh BB-4810H Hydraulic Box and Pan Finger Brake, 10ga x 48" - BA9-1000403
Working with thicker materials? This finger brake can bend 10 gauge mild steel across its 48" (4-foot) length. A welded steel frame prevents misalignment and ensures accuracy.
- Runs on 220-volt 3-phase power.
- Powerful 3 hp motor controls all the hydraulic functions.
- 1" beam adjustment.
- Maximum bend angle of 135°.
- Includes 11 fingers (3 fingers of 3", 2 of 4", 5 of 5", 1 of 6"), allowing you to adjust for different size boxes and pans you want to make.
- Industrial-grade hydraulics lift the leaf for clean, precise motion.
- You can operate this hydraulic brake in manual or semi-automatic mode.
- Hydraulic motor turns a cam to lift and clamp the beam when bending 10 gauge mild steel.
- Adjustable bend auto-stop makes it easy to produce repeatable bends.
- Removable bending support lets you get closer between bends.
- Fully-welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity.
- Baileigh backs this hydraulic box and pan brake with a 1-year parts warranty.
- Comes with lifetime technical support by phone. Call up Baileigh's team of machine experts whenever you need help or application advice.
Specifications:
| Part Number | BB-4810H |
| Stock Number | BA9-1000403 |
| Motor | 3 hp |
| Min Reverse Bend | .984" |
| Thickness (SS) | 10 ga. (12 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3" – 4" – 5" – 6" |
| Power | 220V / 3-phase |
| Shipping Weight | 3,850 lbs. |
| Length | 48" |
| Shipping Dimensions | 86" x 50" x 69" |
