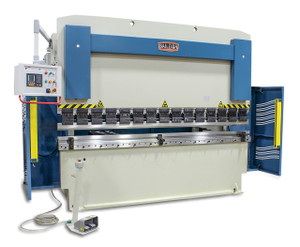

Baileigh BP-22413CNC Hydraulic Press Brake, 224 Ton, 13 ft. Length - BA9-1000791

To bend 10-foot metal sheets, this industrial press brake uses a durable Vickers/Eaton® pump. Anyone can learn to program the controller. The rigid steel frame maintains accuracy.

  • Delivers a whopping 224 tons of pressure.
  • Offers 13-foot length (157") and 123" of distance between the housings.
  • This press brake is also available in a 10-foot version (BP-22410CNC)
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system with a Vickers/Eaton® pump will keep the machine running smoothly and reliably.
  • Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
  • Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.
  • Hydraulic cylinders are near the back of the machine for convenient fluid changes.


  • Runs in single-bend mode or programmable mode.
  • Comes standard with 2 axes of control: stroke and back gauge distance.
  • Controller is so simple that you could train someone to use it in 5 minutes.
  • Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
  • Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
  • Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
  • Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
  • You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
  • Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
  • Speed option lets you reduce cycle time and make your shop more efficient.
  • Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
  • The 23.62" back gauge can advance or retract according to programmed instructions.


  • Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
  • Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results.
  • Includes support arms around 2 feet in length.
  • Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
  • Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
  • Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
  • Safety light curtains prevent the machine from bending when someone is too close.
  • Light curtains will swing open and get out of the way when you’re doing a tool change.


  • This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
  • Replacement parts are in stock at Baileigh's Wisconsin headquarters, so we can get them to you quickly.
  • Baileigh offer a 1-year parts warranty.
  • With lifetime technical support by phone, you can contact Baileigh any time and talk with service reps who have years of experience with industrial machinery.


Part Number BP-22413CNC
Stock Number BA9-1000791
Table Length 157"
Maximum Pressure 224 tons
Throat Depth 12.5"
Stroke Distance 7"
Approach Speed 2.0" / sec.
Back Gauge Motor 1/2 hp
Bending Speed .236" / sec
Main Motor 15 hp
Distance Between Housings 123"
Distance From Table To Ram 19.6"
Power 220V / 3-phase
Shipping Weight 29,600 lbs
Shipping Dimensions (Inches) 184 x 76 x 114
