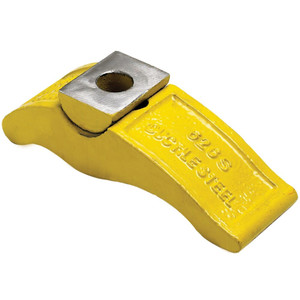

BESSEY RiteHite Hold Down Clamp (Model S - Standard Reach), 1-3/4" Clamping Capacity, 13200 lbs. Clamping Force - 501S
Brand: Bessey- SKU:
- 501S
- ID:
- 916994
| Clamping Capacity | 1-3/4" |
| Bolt Size | 1/2" |
| Dimensions | 4-1/4" x 1-7/16" x 1-1/2" |
| Max Torque | 110 lb-ft. |
| Clamping Force | 13200 lbs. |
BESSEY RiteHite Hold Down Clamp (Model S - Standard Reach), 1-3/4" Clamping Capacity, 13200 lbs. Clamping Force - 501S
Use the BESSEY® RiteHite to hold your work piece in place with the simple single component design. Having the swivel rocker attached to the clamps means you do not have to worry about misplacing them, like with other 2 piece systems. These fast, self positioning hold-down clamps are made of strong ductile iron. RiteHite hold down clamps can be used on any T-slot machine table (fasteners not included). Using self positioning RiteHite clamps reduces set-up time & increases productivity. The "L" versions are longer offering more reach, while the shorter "S" versions offer greater strength.
Features:
- Self-positioning, single component design
- Swivel rocker attached to body
- For T-slot hold down tables in machine shop applications
- L Series has a longer throw than S series
View the BESSEY RiteHite Hold Down Clamps Brochure
Specifications:
| Item Number | Clamping capacity (inch) |
Bolt Ø (inch) |
Dimensions (inch) |
Max. torque (LB-FT) |
Clamping force (lbs) |
Approx. weight (lbs) |
| 501S | 1-3/4 | 1/2 | 4-1/4 x 1-7/16 x 1-1/2 | 110 | 13200 | 1.19 |
See all BESSEY RiteHite Hold Down Clamps (Model S - Standard Reach)
