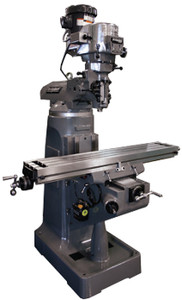

Bridgeport Series I Milling Machine - RL30-3061101C

Brand:   Bridgeport Milling Machine
SKU:
RL30-3061101C
ID:
82855
$27,995.00
Current Stock:
Adding to cart… The item has been added

Bridgeport

Bridgeport Series I Milling Machine


Features:

For more than 60 years, the Bridgeport Series I Standard Mill - the original, all-purpose mill - has been the "real thing" in milling, drilling, and boring for metalworking shops throughout the world. Today, the Series I Standard continues to fulfill the industry's need for an accurate, reliable, and versatile mill.

The Series I Standard features an innovative airflow cooling design that uses no external fans to prolong bearing life and prevent expansion from heat build-up. A full range of accessories are available, including optional chrome-plated ways and gibs to ensure that the machine will last a lifetime.


SPECIFICATIONS

Range:

  • Table Travel (X-Axis) 36 in. (914 mm)
  • Saddle Travel (Y-Axis) 12 in. (305 mm)
  • Quill Travel 5 in. (127 mm)
  • Knee Travel (Z-Axis)* 16 in. (406 mm)
  • Ram Travel 12 in. (305 mm)
  • Throat Distance (min.) 6.75 in. (171 mm)
  • Throat Distance (max.) 18.75 in. (476 mm)
  • Table to Spindle Nose Gage Line:
    - (min.) 2.5 in. (64 mm)
    - (max.) 18.25 in. (463 mm)

Table:

  • Overall Size 49 x 9 in. (1245 x 299 mm)
  • Working Surface 49 x 9 in. (1245 x 229 mm)
  • T-slots Centers 3 @ 2.5 in. (64 mm)
  • T-slot Size 0.625 in. (16 mm)
  • Height above Floor (max.) 47.25 in. (1200 mm)
  • Weight of Workpiece (max.) TBD

Spindle (2J Head):

  • AC Power Rating:
    - (30 min. duty cycle) 3 hp (2.2 kW)
    - (continuous) 2 hp (1.5 kW)
  • Spindle Taper R-8
  • Tooling R-8 Collets

Optional Spindle Taper:

  • Spindle Taper #30 ISO
  • Tool Holder Erickson Quick-Change #30 ISO

Speed Range:

  • High (infinitely variable) 500 – 4200 rpm
  • Low 60 – 500 rpm
  • Power Quill Feed 0.0015 in./rev (0.038 mm)
  • Manual Adjust:
    - 0.003 in./rev (0.076 mm)
    - 0.006 in./rev (0.152 mm)

Drilling Capacity:

  • Power Quill Feed 3/4 in. (19 mm)
  • Milling Capacity (mild steel) 3/4 in. (19 mm)
  • Boring Range (mild steel) 6 in. dia. (152 mm)
  • Spindle Diameter 1.875 in. (48 mm)
  • Quill Diameter 3.375 in. (86 mm)

Positioning:

  • Auto (X, Y) 100 ipm (2540 mm/min)
  • Manual (X, Y) 100 ipm (2540 mm/min)
  • Feedrate Range (X, Y) 0.1 – 35 ipm (2 – 889 mm/min)
  • Minimum Increment 0.0001 in. (0.003 mm)

Space and Weight:

  • Floor Area:
    - 8.3 x 5.3 ft. (2.53 x 1.62 m)
    - 8.3 x 7.8 ft. (2.53 x 2.4 m)**
  • Height 7.04 ft. (2.15 m)
  • Net Weight 1930 lb (875 kg)
  • Shipping Weight 2075 lb (941 kg)

Power:

  • Input Power 208/230/460 volts
  • 3 phase, 50/60 cycle
  • Power Capacity 4kVA

* Knee travel reduced by 1 in. (25.4mm) with Flood Coolant
** Power case door open


View the Operation Manual



See all accessories for the Bridgeport Series I Milling Machine
