CLAUSING/Ibarmia Series X34/40 Geared-drive Round-column Drills - BX34

Brand:   Clausing
SKU:
BX34
ID:
111489
callling
$14,760.00
Current Stock:
Adding to cart… The item has been added

CLAUSING/Ibarmia Series X34/40 Geared-drive Round-column Drills With Manual, Mechanical Clutch or Electromagnetic Clutch Feed Control

The X series range of easy to operate Industrial Drilling Machines offer a variety of capacities and feeds. Engineered for a long work life the X series drills are a great value.

SX models are equipped with manual feed, AX models are equipped with a mechanical clutch automatic feed control and the BX models are equipped with electromagnetic automatic feed control.

Standard Features and Equipments:

  • Drilling capacity in steel: up to 1.57" maximum

  • Drilling capacity in cast iron: up to 1.77" maximum

  • Tapping capacity in steel: up to 1.30" maximum

  • Tapping capacity in cast iron: up to 1.54" maximum

  • Automatic feed reversing system for tapping on “RS” models

  • Hardened and ground high quality steel gears

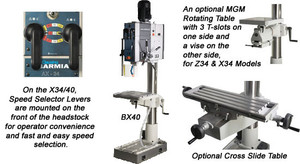

  • Speed plate and selecting levers on front of head

  • Gear box lubrication by automatic pump

  • Machine base with 2 T-slots, coolant tank and pump

  • Large rotating worktable with 3 T-slots,

  • Feed crank wheel for manual feed

  • Depth scale and adjustable depth stop

  • Automatic tool ejector

  • Work Light

  • Built-in low voltage electrical equipment in machine head

  • Emergency STOP

  • Drill guard with microswitch

Optional Equipments:

  • Rotating table and tilting support

  • Automatic pitch control tapping with single speed brake motor

  • Automatic pitch control tapping with pneumatic rapid approach

  • Master guide spindle and nut set for automatic pitch control tapping

  • Union, dragging cone and assembly for multi-spindle heads

  • Wheeled-base

  • Cross slide table

  • Cycle start foot pedal

  • Foot pedal for reversing

  • Worklight with magnetic base

  • Coolant system with independent container

Click Here for Specifications
