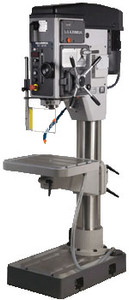

CLAUSING/Ibarmia Series C Belt/Geared-drive Round-column Drills

Brand:   Clausing
ID:
111553
Call for Pricing
Current Stock:
CLAUSING/Ibarmia Series C Belt/Geared-drive Round-column Drills With Push-button Electromagnetic Clutch Automatic Feed Control

The C-series of Industrial Drilling Machines are capable of handling heavier workpieces with a wide range of drilling and tapping capacities. Designed for easy operation with a electromagnetic clutch for precise automatic feed control that can be activated from the feed crank handle or by the lever on the front of machine head.

Standard Features and Equipment:
  • Drilling capacity in steel: 1.97" (50mm) maximum

  • Drilling capacity in cast iron: 2.36" (60mm) maximum

  • Tapping capacity in steel: 1.68" (42mm) maximum

  • Tapping capacity in cast iron: 2" (50mm) maximum

  • Automatic feedreversing system for tapping

  • Automatic feed and cut-off by electromagnetic clutch

  • Hardened and ground high quality steel gears

  • Speed plate and selecting levers on front of head

  • Gear box lubrication by automatic pump

  • Machine base with 2 T-slots, coolant tank and pump

  • Large rotating table with 3 T-slots

  • Feed crank wheel for manual feed

  • Front hand wheel for fine feed work

  • Depth scale and adjustable depth stop

  • Automatic tool ejector

  • Work Light

  • Built-in low voltage electrical equipment in machine head

  • Emergency STOP

  • Drill guard with microswitch

Optional Equipment:
  • Rotating table and tilting support

  • 8" column riser

  • Automatic pitch control tapping with single speed brake motor

  • Automatic pitch control tapping with pneumatic rapid approach

  • Master guide spindle and nut set for automatic pitch control tapping

  • Pneumatic counterbalance with rapid approach and retract

  • Pneumatic counterbalance with rapid approach and retract for tube and profile drilling

  • Pneumatic counterbalance with rapid approach and retract with pitch controlled tapping

  • 50% lower feed range

  • Mechanical spotface device

  • Pneumatic counterbalance

  • Multi-spindle head guide rod

  • Union, dragging cone and assembly for multi-spindle head

  • START-STOP and emergency STOP pendent control

  • Cross slide table

  • Worklight with magnetic base

  • Cycle start foot pedal

  • Foot pedal for reversing

  • Coolant system with independent container

Click Here for Specifications
