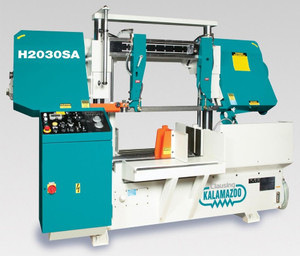

Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw, 20" x 29.5" Max Rectangular Capacity - H2030SA
Brand: Clausing- SKU:
- H2030SA
- ID:
- 113248
Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw, 20" x 29.5" Max Rectangular Capacity - H2030SA
20" (500mm) Semi- Automatic Twin Column Bandsaw
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Features:
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Automatic shutoff at end of cut
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- One general purpose saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
Accessories:
- CM2001H Chip Conveyor
- VP1201 Variable Vise Pressure System, 1 Vise
- SA26 Heavy-duty Roller Table 10' x 25"
- SA27 Heavy-duty Roller Table 5' x 25"
- P10 Stock Stand Assembly 21" - 30"
- CSR1 SAWZIT 1 Gallon
- CSR5 SAWZIT 5 Gallon
Specifications:
| Model | H2030SA |
| Motor | 7.5 HP (5.5kw), 230v 3ph* |
| Hydraulic Pump Motor | 2 HP (.75kw) |
| Hydraulic Oil Capacity | 10 Gallons (40 Liters) |
| Blade Speeds (Variable Speed) | 66 - 328 fpm (20 - 100 M/min) |
| Blade Size (W x T x L) | 2" x .063" x 19'-10" (54 x 1.6 x 6040 mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 21.5 Gallons (85 Liters) |
| 90° Cutting Capacity - Round | 20" (500 mm) |
| 90° Cutting Capacity - Square | 20" (500 mm) |
| 90° Cutting Capacity - Rectangular | 20" x 29.5" (500 x 750 mm) |
| Length | 55.5" (1410mm) |
| Width | 124" (3150mm) |
| Height | 79" (2010mm) |
| Bed Height | 27.5" (700mm) |
| Net Weight | 4,620 lbs. (2100 kg) |
| Shipping Weight | 5,720 lbs. (2600 kg) |
* Other voltages optional may require a transformer or special order.
Design and specifications are subject to change without notice.
