Edge Technology Tramming Ring - 68-000

Edge Technology Tramming Ring - 68-000

The Tramming Ring by Edge Technology is designed to make the process of tramming a milling machine faster and more accurate. The continuous smooth top surface is ideal to sweep with an indicator. The top and bottom surfaces are ground flat and parallel. The unit is sized to fit the bed of a 6" vise allowing the head to be trammed to the vise or the table.

Features:

• The top and bottom surfaces are precision ground to be parallel within 0.0002"
• The center hole can be used to quickly align the unit to the spindle axis
• Outside diameter: 5.9"
• Height: 2"
• Made from heat treated tool steel

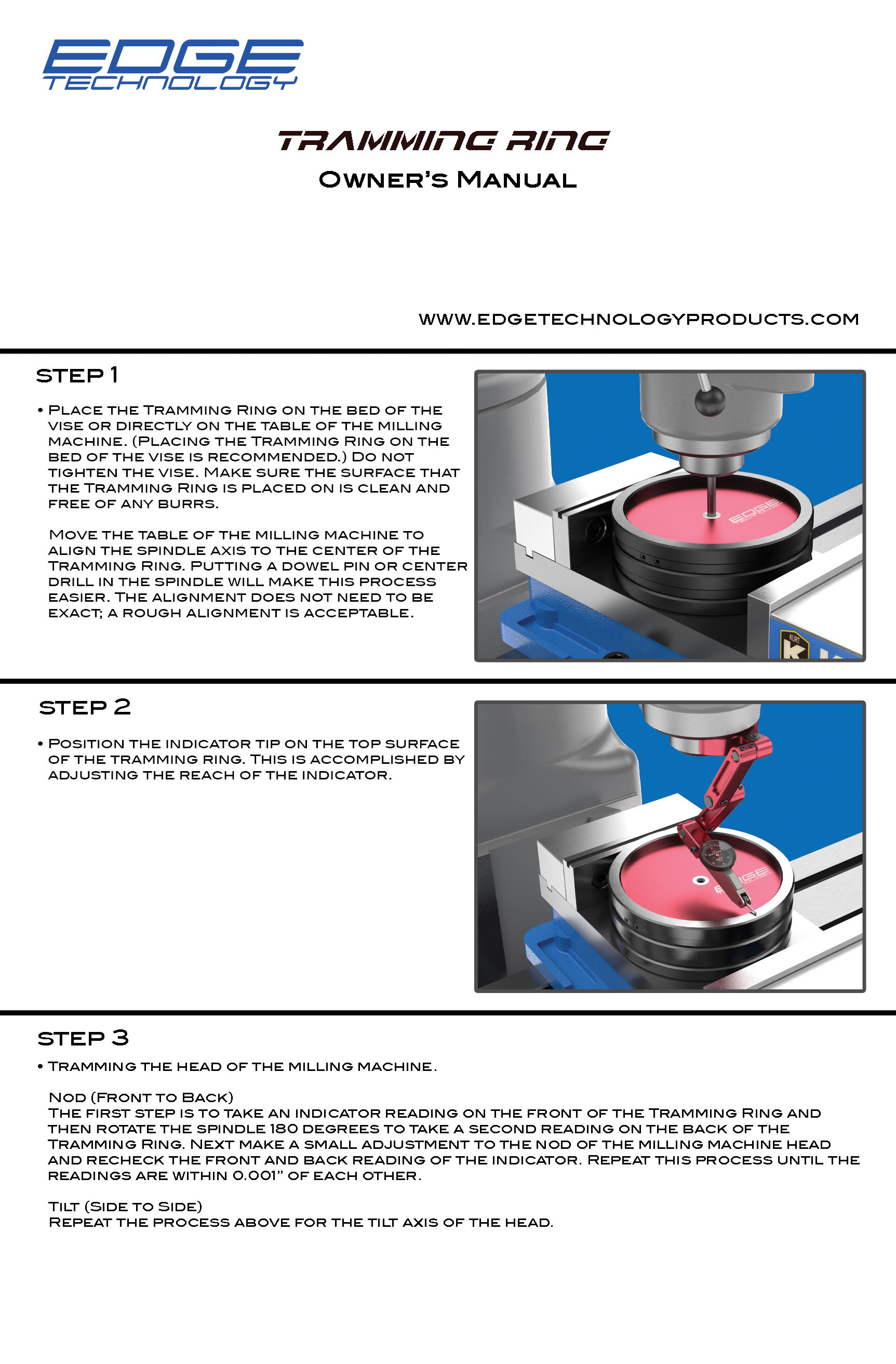

View the Instruction Manual
