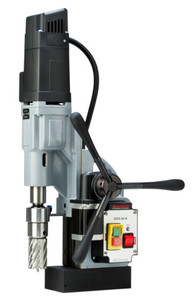

Euroboor Automatic Magnetic Drilling Machine - ECO.55-A
Brand: Euroboor- SKU:
- ECO.55-A
- ID:
- 317754
$2,695.00
Euroboor Automatic Magnetic Drilling Machine
- ECO.55-A
Efficient drilling to the second power. Featuring a newly designed self-feed system our automatic machines offer the top level of technology. With highly intelligent electronics, the most stable construction in the market and functionalities such as "automatic return", these drilling machines will actually drill holes with the highest efficiency. There is no doubt our automatic drilling machines will help you increase productivity and cost savings like no other.
Features:
- Full automatic drilling
- High precision slide & rail construction
- Integrated oil bath gearbox
- Morse Taper 3 spindle
- External access to carbon brushes
- Digital read - out
- Intelligent electronics combine maximum drilling speed with increased cutter lifetime
Specifications:
| Annular Cutters | ø 1/2" - 2 3/16" (mild steel) |
| Twist Drills | ø 1/16" - 15/16" |
| Length | 13 9/16" |
| Width | 12" |
| Height | 19 5/16" - 26" |
| Stroke | 6 11/16" |
| Weight | 35 lbs |
| Magnet (L x W x H) | 6 11/16" x 3 3/8" x 1 7/8" |
| Magnetic Force | 4100 lbs |
| Motor Power | 14.5 A |
| Total Power | 15.6 A |
| Speed (no load) | 60 - 275 rpm 100 - 500 rpm |
| Speed (load) | 60 - 175 rpm 100 - 500 rpm |
| Spindle | MT3 3/4" Weldon |
| Voltage | 110 - 120 V / 50-60 Hz 220 - 240 V / 50-60 Hz |
Click to view Euroboor Annular Cutters
