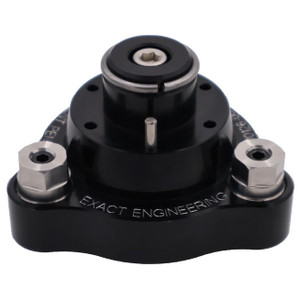

Exact Engineering Tool Probe Mount STS-A (Single T-Slot - Adjustable) - E500126-001

Exact Engineering Tool Probe Mount STS-A (Single T-Slot - Adjustable) - E500126-001

Newest tool probe mounts in a Single T-Slot freeing up your table.

• Utilizing a single T-Slot and the table face for mounting makes this a truly universal mounting system.
• Kinematic mount ensures repeatability.
• Single piece hardened A2 tool steel Kinematic T-Nut fits most machine tables. (see dimensioned image to verify it will fit your table).
• Adaptive Kinematic T-Nut can be customized to fit any T-Slot if the single piece T-Nut does not fit your machine. You can make your own adapter (see Images) or we can provide. Please inquire for more information.
• Coupling forces provided by single rare earth magnet.
• Anodized aluminum base prevents ferrous chip buildup.

Frustration Free Tool Probe Alignments with our built-in No-Creep Adjusters

• OEM alignment base is eliminated. Probe mounts directly to our base.
• Three No-Creep Locking Adjusters provide precise, deterministic and fast alignments.

Instantaneously mount and de-mount a Renishaw OTS/RTS tool probe in seconds.

• Patent pending design provides for instantaneous mounting and de-mounting of a tool probing system.
• Repeatability < 3um.
• Rated to 3g acceleration.
• Completely free up your table when probe is removed.
• Remove and replace the tool probe as often as desired – no re-calibration needed.
• No tools or special skills required, use only your hands as rare earth magnet provides proper nesting forces.
• Protect probe from damage during machining, stock changes etc.
• Engineered, manufactured and tested in the USA by Exact Engineering.
• Compatible with Renishaw OTS or RTS tool probes.
• Tool Probe not included.
