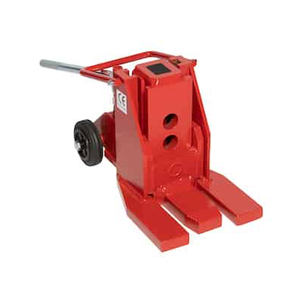

GKS Forklift Hydraulic Jacks
- Safely lifting, moving and transporting heavy loads around your company property isn’t just a matter of day-to-day business, it’s also a matter of safety and efficiency.
- Designed with outstanding support and stability, the self-contained hydraulic toe jack features three lift-toe positions. The toe and top plate support the full load capacity, while the release valve facilitates precise and gradual lowering.
- The toe jacks are engineered to operate safely in a variety of different manufacturing facilities, workshops and other sites. Whether the operator is working indoors or outdoors, the safety valve protects against overloading, while the extended reinforced safety toe with grooved surface prevents loads from slipping during loading, transport or unloading.
- The load capacity of the toe jack can be doubled when operated in tandem with a second jack using an external GKS PV Hand Pump
- The original adjustable toe jack
- Simplified Design—less parts means less problems
- Non slip friction pad on the head of the jack
- Extended feet for increased stability
- Longer, grooved safety toe
- Same capacity on the toe and the head
- 5-year warranty
1-10189 Specifications
| Load Capacity | 11,000 lbs. (5 t) 50kN |
| Working Pressure | 7,542 psi (520 bar) |
| Loading Position 1 | 1.2" (30mm) |
| Loading Position 2 | 4.4" (111mm) |
| Loading Position 3 | 6.3" (160mm) |
| Lifting From Head | 10.4" (265 mm) |
| Lifting Height | 5.5" (140 mm) |
| Loading Height |
Top plate 10.4" (265 mm) |
| Top Plate LxW | 2.7 x 2.4" (68 x 60 mm) |
1-12378 Specifications
| Load Capacity | 22,000 lbs. (10 t) 100kN |
| Working Pressure | 7,542 psi (520 bar) |
| Loading Position 1 | 1.2" (30mm) |
| Loading Position 2 | 3.6" (92mm) |
| Loading Position 3 | 6.3" (160mm) |
| Lifting From Head | 12.5" (318 mm) |
| Lifting Height | 5.5" (140 mm) |
| Loading Height |
Top plate 12.5" (318 mm) |
| Top Plate LxW | 2.7 x 2.4" (68 x 60 mm) |
