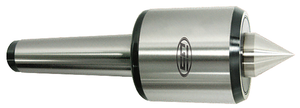

GS Tooling High Speed Live Centers
- Accuracy guaranteed to 0.002mm TIR (0.0001”)
- Excellent for grinders and CNC machines
- Heat treated point to HRC 60±2
- High RPM (up to 6,000)
- Five Bearing System: A double row angular contact bearing, two single row angular contact bearings, and a rear needle roller bearing combine to provide improved runout, greater stability, longer tool life, and superior performance
- Anti-friction seal for coolant deflection and high speed
- Heat treated body for extra strength, rigidity, and long life
- Shaft borehole for easy, efficient dismounting
- Drop forged body (HRC50±2) for long life
- Max. Runout: 0.0001”
| Item No. | A | B | C | D | E | F | L |
| 311-034 | 1.97" | 0.79" | 3.35" | 2.28" | 0.91" | 0.18" | 6.54" |
| 311-026 | 2.60" | 1.18" | 4.25" | 2.80" | 1.38" | 0.21" | 8.43" |
| 311-027 | 3.15" | 1.38" | 5.35" | 2.99" | 1.50" | 0.25" | 9.84" |
