GS Tooling Multi-Tasking Modular Vise for 5-Axis Machining Centers, Type 3x266 - 382-526

Brand:   GS Tooling
SKU:
382-526
ID:
356270
callling
$3,049.80
Current Stock:
Adding to cart… The item has been added

Sowa GS Tooling

GS Tooling Multi-Tasking Modular Vise for 5-Axis Machining Centers, Type 3x266 - 382-526

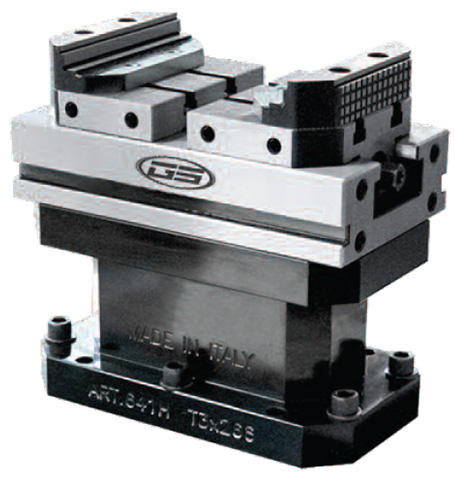

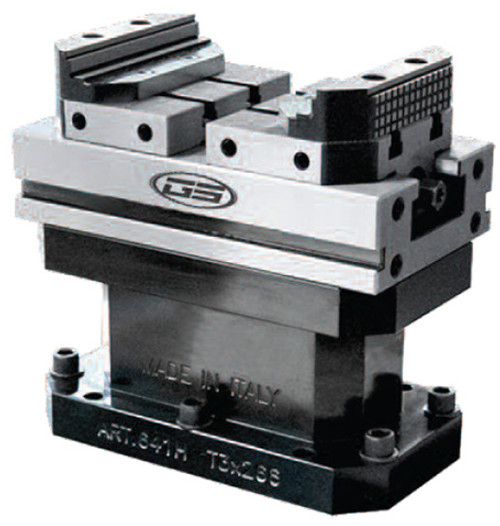

The Multitasking range of vises has been specially designed for 5-axis machines. Working on 5 sides of the workpiece, it allows the best optimization of the machining cycle. Thanks to the compact design this kind of vise can be installed on all machining centers. The use of GRIP jaws is strongly recommended with multitasking vises.


Features:

  • Self-centering or eccentric
  • Eccentric jaw adjustment in steps of 2mm
  • Highest accuracy in positioning and alignment (±0.02mm) due to ground rack teeth on both the base and the fixed jaws
  • Minimum deflection
  • Solid, rigid construction and maximum clamping ratio to the total length
  • Positioning through ground holes or keyways
  • All case hardened to HRC60 for durability

Risers and alternate design jaws also available.


Specifications:

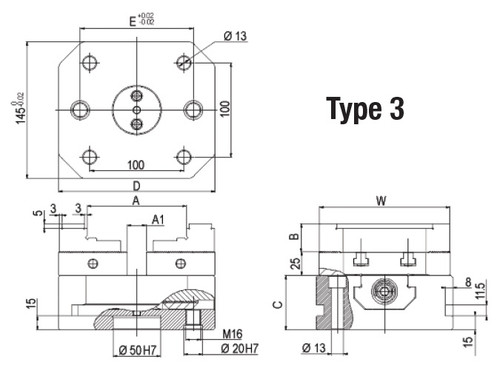

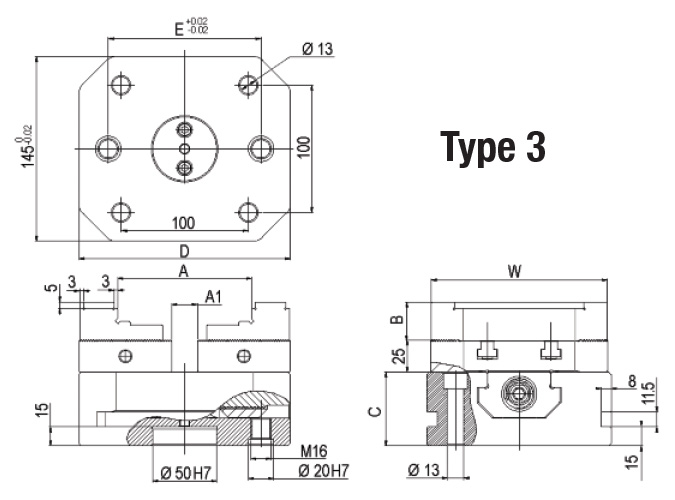

Type Type 1 Type 2 Type 3x166 Type 3x266
Item Number 382-520 382-522 382-524 382-526
A 74 104 108 208
A1 - - 20 60
W 74 99 138 138
B 15 20 30 30
C 50 70 58 58
øD/D 120 160 166 266
E 5 35 120 200
F 92 120 - -
G 20 25 - -
H 20 40 - -
øL H7 20 20 - -
M 9 11 - -
kg 4.9 11 13 20
kN 16 20 30 30



See all GS Tooling Multi-Tasking Modular Vises for 5-Axis Machining Centers
