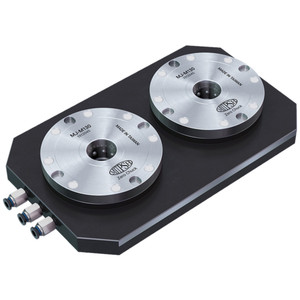

Hold Everything 2-Way Zero Point Clamp Station (200mm Center) FJ-AB12 - Type 100 Chuck - 2S45CM-100P200
Brand: Hold Everything- SKU:
- 2S45CM-100P200
- ID:
- 699209
$1,817.95
Hold Everything 2-Way Zero Point Clamp Station (200mm Center) FJ-AB12 - Type 100 Chuck - 2S45CM-100P200
Features:
- Quick-Change Work Fixturing - Type 130 Chuck
- Spring-Loaded System
- Pneumatically Opening
Technical Data:
- Dimensions: 370mm x 190mm x 45mm
- Material: Chuck: 440C Stainless Steel
- Base: 1045 with Black Oxide
- Pull-Down Force: 5 kN (No Air)
- Pull-Down Force: 12 kN (With Air)
- Unlocking Force: 84 kN
- Air Connection: QTY: 3 - Ø 8mm (5/16")
- Actuation Pressure: 6 bar (87 psi) Minimum
- Repeat Accuracy: < 0.005mm (0.0002")
- Weight: 12 kg (26.5 lbs)
| Type | Dimension (mm) | Weight (kg) | |
| A | B | ||
| FJ-AB12 | 200 | 370 | 12 |
What's Included:
- QTY 2 - Type 130 Chucks Installed on Base
- QTY 1 - Rotary Hand Valve (4 Way / 3 Position)
- Zero Point System Instruction Manual
