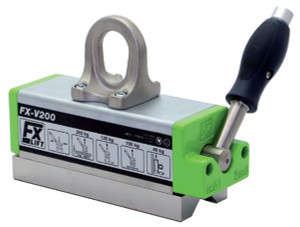

Industrial Magnetics FXV Permanent Rare-Earth Lifting Magnet for Beams, Angle Iron (90°) and Hot Parts, 440 lbs./220 kg. Load Limit - FXV0440

Brand:   Industrial Magnetics
SKU:
FXV0440
ID:
353642
Load Limit 440 lbs. / 220 kg.
callling
$795.00
Current Stock:
Adding to cart… The item has been added

Industrial Magnetics

Industrial Magnetics FXV Permanent Rare-Earth Lifting
Magnet for Beams, Angle Iron (90°) and Hot Parts
440 lbs./220 kg. Load Limit - FXV0440


These on/off permanent lifts offer strength in a lightweight, compact package. Each line of lifting magnets in the FX family of products has been specifically designed for maximum performance by user application. The size, shape and dimension of the parts you'll primarily be lifting - whether flat, curved, or circular-shaped - will determine the best FX lift magnet for you.


On all magnets in the series, the unique handle design only requires a 90° rotation to either engage or disengage the magnet (versus the 120° or even 180° required on most on/off lifting magnets), making it easy for operators to use in applications where the magnet is lifting something from inside a bin or a deep trough. The handle also features a positive lock-on/lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only partially on, or from being accidentally bumped to the "off" position and dropping the load pre-maturely.


Features:

  • ON/OFF, Rare-Earth Permanent Magnet
  • Handle locks in both the On & Off positions for safety
  • 3:1 design factor
  • Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class
  • Manufactured in Germany


FXV PERMANENT LIFTING MAGNETS for Beams, Angle Iron (90°) and Hot Parts

FXV - Mainly angle iron (90°), I-beam web location where you need the handle rotation higher & hot parts up to 482°F


The FXV On/Off permanent lift magnets are ideal for handling 90° shapes like angle iron, square tubing, and hot parts. Also works extremely well for inside webbing of I-beams where you need higher handle rotation. The on/off handle only requires 90° rotation and locks at both on/off positions. Durable construction with recessed metal name plates and corrosion-resistant plated magnet surface. Features a 3:1 design factor and meets 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3.


Hot part Handling - contact time and cooling times:

302°F (150°C) = 100%
392°F (200°C) = 50%, Max. 4 minutes contact, 4 minutes cooling time
482°F (250°C) = 33%, Max. 4 minutes contact, 8 minutes cooling time
(Note: WLL reduces as temperature raises)


Specifications:

Item Number FXV0440
Working Load Limit 440 lbs. / 220 kg.
Overall Height 5.5"
Overall Length 7.7"
Magnet Height 3"
Magnet Width 2.5"
Magnet Length 6.8"
Handle Length 5.3"
Bail Thickness 0.4"
Bail Height 1.6"
Bail Width 1"
Weight 12 lbs.


View more Specifications & Information


See all Industrial Magnetics FXV Permanent Rare-Earth Lifting Magnets for Beams, Angle Iron (90°) and Hot Parts
