Insize Digital Micrometer/Snap Gage - With Data Interface, 9-10"/225-250mm Range - 3351-250
Brand: Insize- SKU:
- 3351-250
- ID:
- 887803
| Accuracy | ±.00020" |
| Measuring Face Parallelism | .00012" |
$1,921.95
Insize Digital Micrometer/Snap Gage - With Data Interface, 9-10"/225-250mm Range - 3351-250
- Absolute encoder, the original data remains after power off
- Adjustable resolution: .00001"/0.0002mm, .00005"/0.001mm, .0005"/0.01mm
- Repeatability: .00004"
- Measuring Face Flatness: .00002"
- One turn of sleeve makes .2" spindle feed
- Press the fork, the spindle retracts .12"
- Linear ball bearings for ten million times use
- Carbide spindle and anvil
- Measuring force 5-8N Customizable measuring force range 2-12N Attention: small measuring force will reduce the dustproof and waterproof level
- Measurement accuracy is not affected by the use of sleeve
- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution
- Supplied with setting standards
- Power: rechargeable battery, for 24 hours continuous working
- Supplied with Manufacturer Inspection Certificate

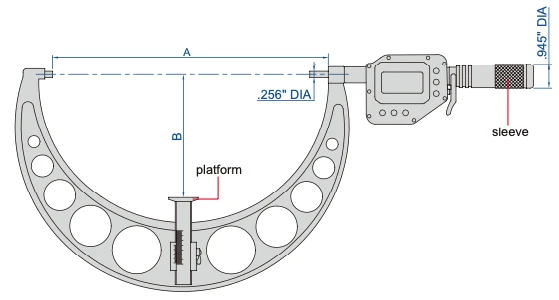

| A | B |
| 9.961" | 4.921" |
For More Insize Digital Micrometer/Snap Gages Click Here
