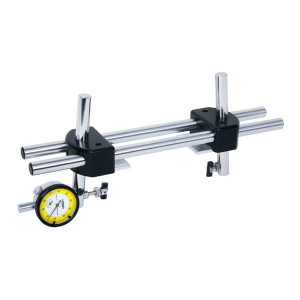

Insize External Thread Crest Diameter Measuring Instruments

Measure the crest diameter of external thread with nominal diameter larger than 2 3/8"(60.325mm) and less than 20" (508mm)

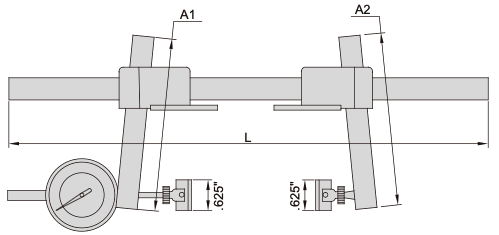

Item No.	L	A1	A2
2236-5	10.236"	4.331"	4.331"
2236-5E	10.236"	4.331"	4.331"
2236-20	12", 18" or 24"*	6.299"	6.299"

*Select suitable length of arm according to workpieces

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number	Description	Price	Quantity
2236-5	Insize External Thread Crest Diameter Measuring Instrument, 2 3/8-5 1/2"/60.325-139.7mm Range	5mm	0.01mm	0.02mm	$ 5,783.95
2236-5E	Insize External Thread Crest Diameter Measuring Instrument, 2 3/8-5 1/2"/60.325-139.7mm Range	.25"	.0005"	.0008"	$ 5,667.95
2236-20	Insize External Thread Crest Diameter Measuring Instrument, 2 3/8-20"/60.325-508mm Range	.50"	.0005"	.002"	$ 6,796.95
