Interstate 22 Pc. Collet Block Chuck & 5C Collet Set - 34-979-5
Brand: Interstate- SKU:
- 34-979-5
- ID:
- 106882
$410.46

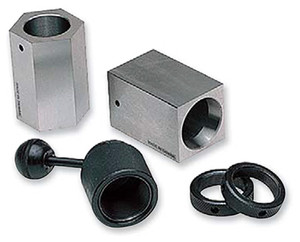

Interstate 22 Pc. Collet Block Chuck & 5C Collet Set
Features:
- Uses all standard 5C type collets.
- Made with square and hex bodies.
- Used for matching round, square, or hex shaped parts or cross drilling at 60º or 90º intervals.
- Blocks are supplied with standard ring closer.
- Quick acting cam lever closer available, optional.
- Blocks can be held directly on a magnetic chuck or in a vise.
- Hardened tool steel.
- Capacity: 1/16" - 1-1/8"
- Accuracy: Precision ground square and parallel to ±0.0005"
22 Piece Collet Block Chuck & 5C Collet Set
Set Includes:
3 collet block chucks
18 Piece 5C collets: 1/16" - 1-1/8"
1 - 72 Piece Collet Rack
Specifications:
| Collet System | 5C Round |
| Number of Pieces | 22 |
| Minimum Collet Capacity (Inch) | 1/16 |
| Minimum Collet Capacity (Decimal Inch) | 0.0625 |
| Maximum Collet Capacity (Inch) | 1-1/8 |
| Maximum Collet Capacity (Decimal Inch) | 1.1250 |
| Size 1 (Inch) | 1/16; 1/8; 3/16; 1/4; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8; 11/16; 3/4; 13/16; 7/8; 15/16; 1 |
