Interstate Bull Nose Live Center for Piping or Tubing, MT2 - 34-866-4
Brand: Interstate- SKU:
- 34-866-4
- ID:
- 106905
$139.95

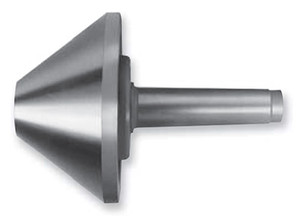

Interstate Bull Nose Live Center for Piping or Tubing, MT2
The Bull Nose center has all the features of the live center, but with a larger rugged head for working with pipe and hollow shafts.
Features:
- Radial loads based on 500 RPM.
- Bearing sealed and waterproofed to assure long life and consistent accuracy.
- Accuracy: 0.0003"
Specifications:
| ITEM NUMBER | 34-866-4 | 34-867-2 | 74-862-4 | 34-868-0 | 34-869-8 |
| MORSE TAPER | 2 | 3 | 3 | 4 | 5 |
| OUTSIDE DIA. | 2.480" | 3.070" | 4.210" | 5.040" | 5.790" |
| MIN. CONE DIA. | 0.460" | 0.710" | 1.250" | 1.380" | 1.380" |
| HEAD L. a2 | 2.480" | 3.030" | 2.760" | 3.270" | 4.090" |
| OAL | 5.350" | 6.770" | 6.500" | 7.600" | 9.580" |
| ANGLE a | 70° | 70° | 75° | 75° | 75° |
| RADIAL LOAD (LBS.) | 440 | 440 | 660 | 700 | 1100 |
See all Interstate Bull Nose Live Centers for Piping or Tubing
